MCC & Distribution Panels

Motor Control Centre (MCC) and Distribution Panels are designed to ensure safe, reliable and efficient power distribution and motor control in industrial and commercial installations. These panels serve as the central point for controlling motors, feeders and electrical loads.

MCC Panels consist of multiple compartments housing motor starters, contactors, overload relays, protection devices and control equipment. They provide centralized control, protection and monitoring of motors used in pumps, compressors, conveyors, HVAC systems and other industrial applications.

Distribution Panels are used for proper distribution of electrical power to various circuits while ensuring protection against overloads and short circuits. They are equipped with MCCBs, MCBs, busbars and metering devices for safe and systematic power management.

Our MCC & Distribution Panels are designed as per IEC standards, manufactured with high-quality components and tested for safety, durability and long service life. Custom-built designs are available to meet specific project requirements.

Salient Features of MCC & Distribution Panels:

  • Robust and modular construction for industrial environments.
  • Designed as per IEC standards.
  • High-quality copper / aluminum busbar system.
  • Short circuit and overload protection with MCCB / MCB.
  • Provision for motor starters – DOL, Star-Delta, Soft Starter, VFD.
  • Safe and reliable power distribution system.
  • Compartmentalized design for enhanced safety.
  • Proper heat dissipation and ventilation system.
  • Incoming & outgoing feeder flexibility.
  • Digital metering and monitoring options available.
  • Powder-coated, CNC fabricated panel structure.
  • Suitable for indoor and outdoor applications (IP rated panels).

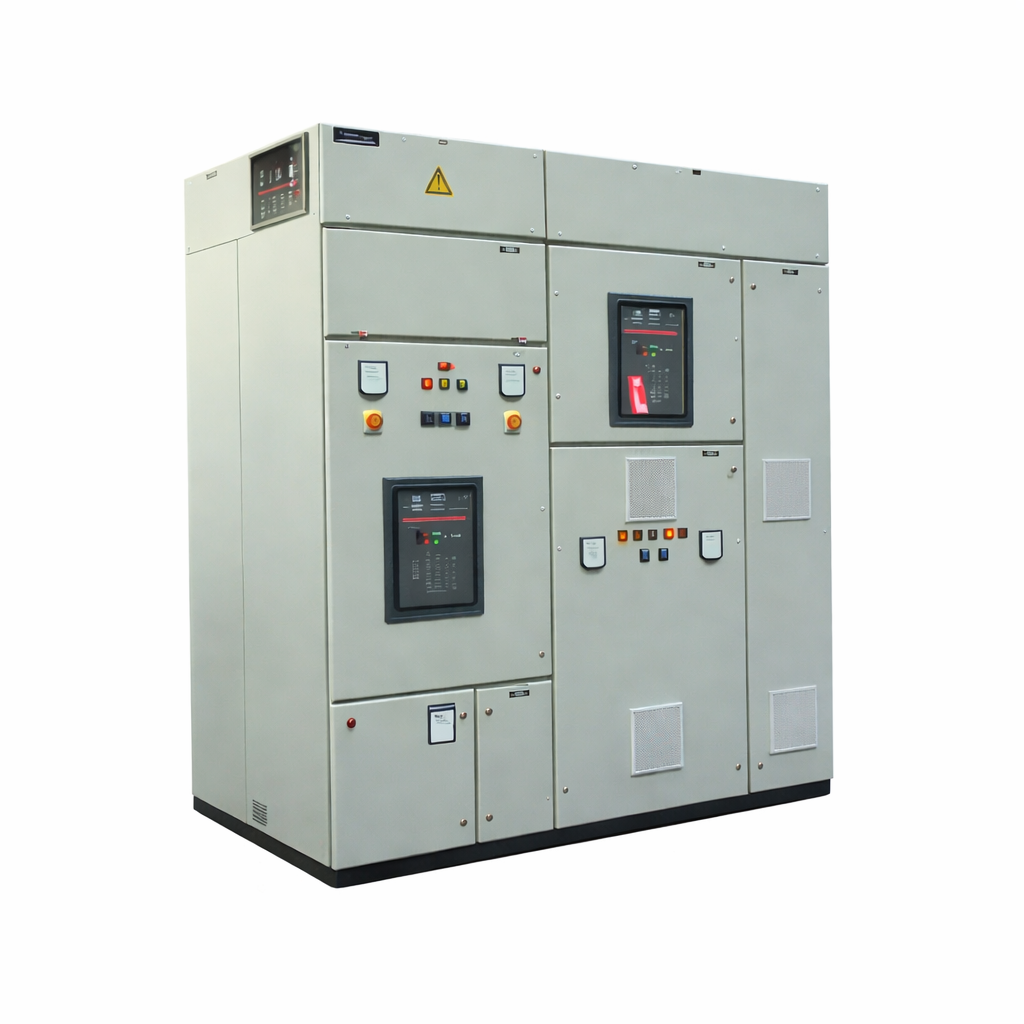

MCC Panel

Data Required for Designing MCC & Distribution Panels:

  • System voltage & frequency.
  • Total connected load (kW / kVA).
  • Number of incoming and outgoing feeders.
  • Type of loads – Motors, Lighting, HVAC, Heaters, etc.
  • Starting method of motors (DOL / Star-Delta / Soft Starter / VFD).
  • Fault level / Short Circuit Capacity (SCC).
  • Busbar material preference (Copper / Aluminum).
  • Protection scheme (MCCB / ACB / MCB / Relays).
  • Metering & monitoring requirements.
  • Indoor / Outdoor installation (IP protection required).
  • Ambient temperature & site conditions.
  • Transformer / Generator rating & supply details.
